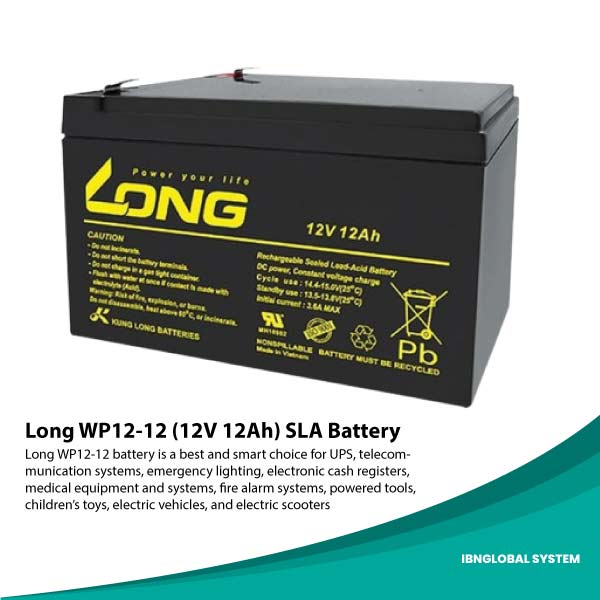

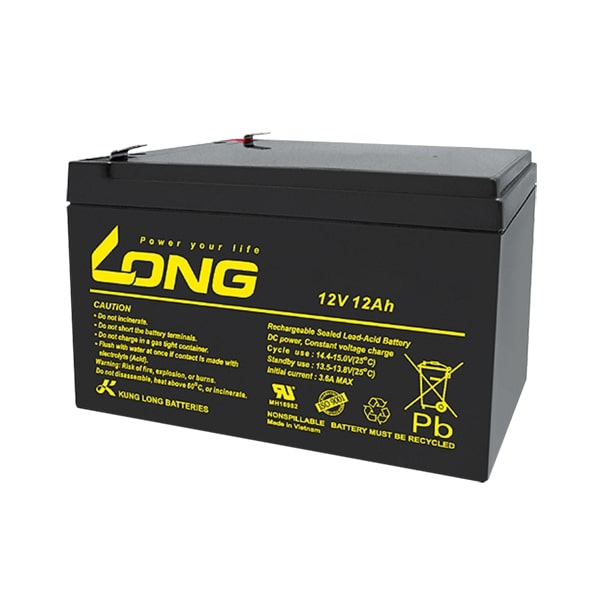

Long WP12-12 (12V, 12Ah) SLA Battery
- Brand: Long
- Model: Long WP12-12 Battery
- Country of Manufacturing: Vietnam
- Type: Rechargeable sealed lead acid battery
- Nominal Voltage: 12V
- Capacity: 12Ah
- Weight: Approx. 4.02 kg
- Length: Approx. 5.98ā³
- Width: Approx. 3.90ā³
- Height: Approx. 3.70ā³
- Warranty: 6 months
Long 12V Ā 12AH Rechargeable Sealed Lead Acid Battery Nominal Voltage (V) 12V Nominal Capacity 20 hour rate (0.6A to 10.50V) 12Ah 10 hour rate (1.14A to 10.50V) 11.4Ah 5 hour rate (2.04A to 10.20V) 10.2Ah 1 C (12A to 9.60V) 6.4Ah 3 C (36A to 9.60V) 4.2Ah Weight Approx. 3.68kg(8.1Lbs.) Dimensions Length (L) 151±1 (5.94±0.04) Width (W) 98±1 (3.86±0.04) Height (H) 93±1 (3.66±0.04) Overall Height (HT) 98±1 (3.86±0.04) Internal Resistance (at 1KHz) Approx. 13 mĪ© Maximum Discharge Current for 5 seconds: 180A Charging Methods at 25ā(77ā) Maximum Charging Currentļ¼ 3.6A Standby use: Float Charging Voltage Coefficient -3.0mV/ā/cell
13.5 to 13.8V Operating Temperature Range Charge -15ā(5ā) to 40ā(104ā) Discharge -15ā(5ā) to 50ā(122ā) Storage -15ā(5ā) to 40ā(104ā) Charge Retention (shelf life) at 20ā(68F) 1 month 92ļ¼ 3 month 90% 6 month 80% Case Material ABS UL94 HB Option: Flammability resistance of (UL94 V-0)
Design Life 3-5 Years. Terminal F1 or F2 (Faston Tab 187 or 250)
