In the event of an emergency apollo 3 KVA online ups provide no gap for even a nanosecond. It has true online dual conversion design and has generator compatible. Apollo 3 KVA give all types of Protections such as: over/low-voltage, overcurrent, overload. Intelligent battery management, extended battery life, intelligent self diagnose function and all kinds of fault protection benefit made this ups the best. Modularized design of subsystems bypass back feed protection, battery leakage protection, parallel redundancy design, increase the system reliability. Customizable wide input voltage range and Large size input LCD display on the front pane.

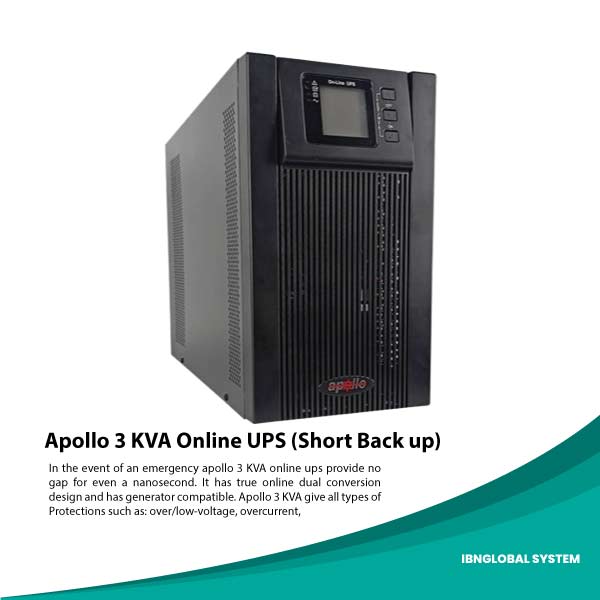

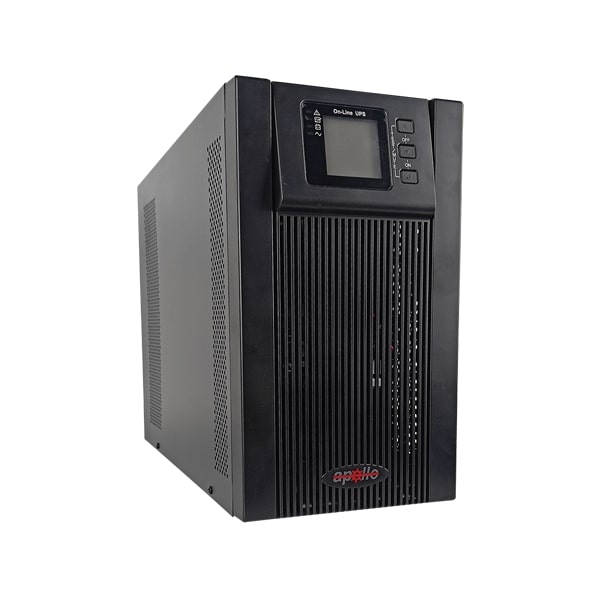

Apollo 3 KVA Online UPS (Short Back up)
| (1:1 Phase) | ||
| MODEL | 2300HS / 2300HS-L | |
| CAPACITY (VA Rating) | 3.0 KVA | |
| INPUT | Voltage | Single Phase, 110Vac~ 290Vac |
| Frequency | 50 Hz (60 Hz on request) ± 5% | |
| Power factor | > 0.98% (full load) | |
| OUTPUT | Voltage | 220Vac |
| Voltage Regulation | 220Vac ± 0.5% | |
| Transient Response | ± 3~4% under full load, change and corrected within 2 ms | |
| Wave form | Pure Sinewave THD<3% | |
| Power factor | 0.8 | |
| Frequency | 50 / 60Hz, ± 0.5% | |
| Crest Factor | 3:1 | |
| Overload | Continuous alarming, switch to bypass, auto recovery upon removing of load | |
| Overload Capacity | <110% load Continuous | |
| 110-125% load 12 Minutes | ||
| 125-150% load 10 Minutes | ||
| >150% load: by pass | ||
| Battery | Battery Type | Maintenance free lead-acid batteries |
| DC Voltage | 96VDC | |
| Backup time | 15-30 minutes depending on load | |
| External Battery | Up to 8 hours long time backup depends on external battery | |
| Supplementary Charger | Optional 200W/500W charger for extended back-up application | |
| Recharge time | 5~8 hours | |
| Cold Start | Yes, UPS cab be started without AC source | |
| Battery Cabinet | Internal Battery (External Battery back is optional) | |
| TRANSFER TIME | Zero (0) millisecond, Inverter to Bypass (Overload) | |
| PROTECTIONS | High Voltage, Overload, Overheating, bypass, Short circuit, Noise Filtering, Spike, Surge | |
| EMI FILTER | 10~100 KHz at 40dB, 100KHz~100MHz at 70Db | |
| ALARM | Audio alarm | Keep 90 seconds at a time interval of 4 seconds |
| Battery Low | Auto shutdown upon complete discharge of battery and auto tum-on upon recovery of utility power | |
| Fault | Continuous alarming | |
| INTERFACE | RS232 / SNMP | |
| SOFTWARE MANGEMENT | AC fault, low battery, intelligent software for shutdown by remote control | |
| TRONSFORMER TYPE | Built-in Galvanic Isolation Transformer | |
| General | Dimensions (mm) | 485x450x190 |
| Weight (KG) | 40 / 19 | |
| OPERATING ENVIRONMENT | Temperature | 0 ~ 40°C (32 – 104°F) |
| Humidity | 30 ~ 90% non-condensing | |
| Attitude | <1500M above sea level | |
| Audio noise | <53dB-65dB at 1 meter distance | |
