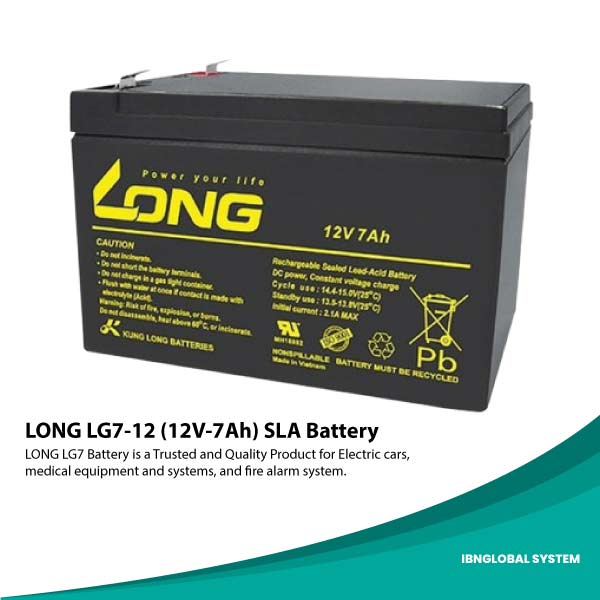

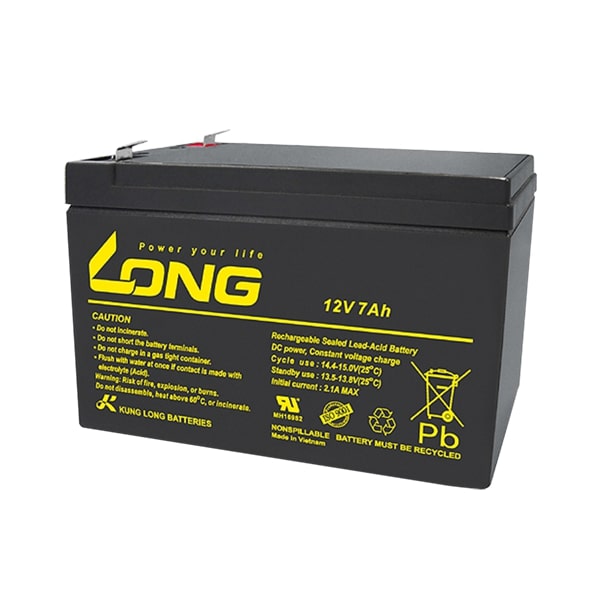

Long LG7-12 12V-7Ah SLA Battery.
This gel battery is durable and long lasting.
It can be charged and discharged.
Durable and long lasting model starts with the alphabet LG
Long LG7-12 batteries are recognized worldwide for high quality batteries. ISO 9001 (printed on the side of the battery).
Fully sealed type that does not emit gas at normal times and can be used safely indoors as a power supply for a variety of devices.
It is highly durable and cost effective for repeated charging and discharging for making it perfect for sub batteries in campers and marines.
The internal battery fluid is gel-shaped and it has a high moisture retention capacity and it is relatively effective for use in high temperature environments. (Outdoor solar power generator Equipment)
Charging Voltage: 13.8 – 14.4 V
Maximum charging current: 2.1A
Constant Voltage Charging 13.50-13.80V
Maximum charging current: 2.1A
Estimated number of times that can be charged and discharged repeatedly.
Used repeatedly after 100% discharge… about 320 times.
Can be used repeatedly after 50% discharge… about 600
Used repeatedly after 30% discharge… Approx. 1,500 times.
Expected Life:
Using standby (standby charging): 7 to 10 years.
The number of charges can be charged and discharged depending on how it is used and the environment used.
Please use a charger that can be charged under 2.1 A shielded battery (sealed type).
Alternatively, you can connect the 12V solar panel (2.1A or less) + charge controller to this battery for charging.
| Long 12V 7AH Rechargeable Sealed Lead Acid Battery | |||
| Nominal Voltage (V) | 12V | ||
| Nominal Capacity | 20 hour rate | (0.35A to 10.50V) 7Ah | |
| 10 hour rate | (0.63A to 10.50V) 6.3Ah | ||
| 5 hour rate | (1.131A to 10.20V) 5.65Ah | ||
| 1 C | (7A to 9.60V) 3.5Ah | ||
| 3 C | (21A to 9.60V) 2.1Ah | ||
| Weight | Approx. 2.0kg(4.4Lbs.) | ||
| Dimensions | Length (L) | 151±1 (5.94±0.04) | |
| Width (W) | 65±1 (2.56±0.04) | ||
| Height (H) | 94±1 (3.70±0.04) | ||
| Overall Height (HT) | 102±1 (4.02±0.04) | ||
| Internal Resistance (at 1KHz) | Approx. 28 mΩ | ||
| Maximum Discharge Current for | 5 seconds: 105A | ||
| Charging Methods at 25℃(77℉) | Maximum Charging Current: | 2.1A | |
| Standby use:
Float Charging Voltage Coefficient -3.0mV/℃/cell |
13.5 to 13.8V | ||
| Operating Temperature Range | Charge | -15℃(5℉) to 40℃(104℉) | |
| Discharge | -15℃(5℉) to 50℃(122℉) | ||
| Storage | -15℃(5℉) to 40℃(104℉) | ||
| Charge Retention (shelf life) at 20℃(68F) | 1 month | 92％ | |
| 3 month | 90% | ||
| 6 month | 80% | ||
| Case Material | ABS UL94 HB
Option: Flammability resistance of (UL94 V-0) |
||
| Design Life | 3-5 Years. | ||
| Terminal | F1 or F2 (Faston Tab 187 or 250) | ||
